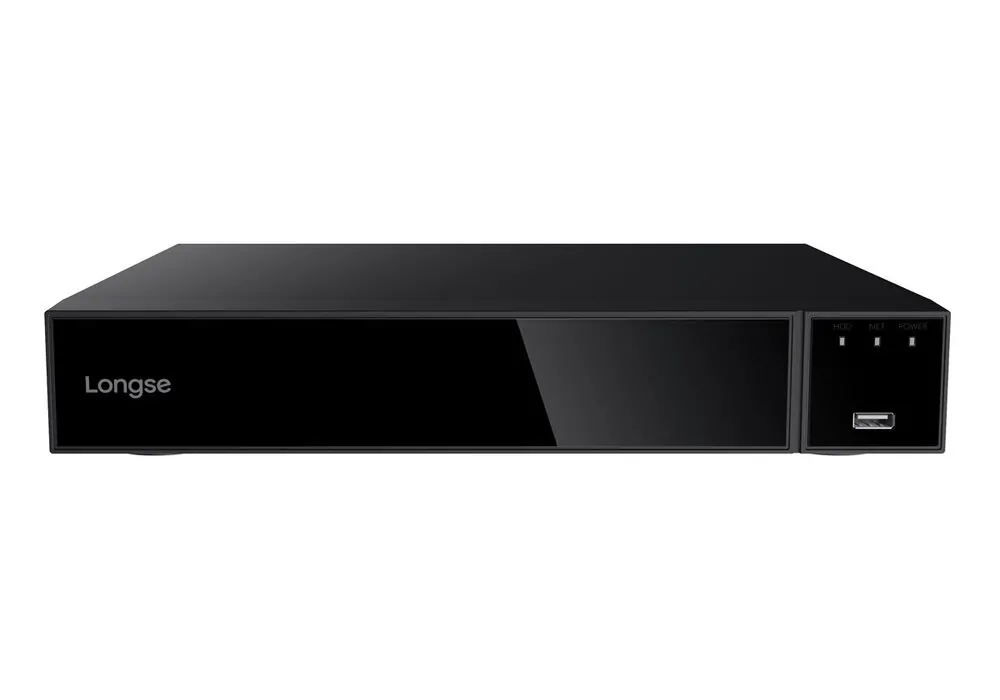

LONGSE XVR υβριδικό καταγραφικό XVR3004C1P, 5MP H.265/H.264, 4 καναλιών

LONGSE XVR υβριδικό καταγραφικό XVR3004C1P, 5MP H.265/H.264, 4 καναλιώνΥβριδικό XVR καταγραφικό 5 σε 1 (AHD, CVI, TVI, IP, Analog) της Longse, με υποστήριξη έως 4 αναλογικών καναλιών ή 16 δικτυακών καναλιών. Υποστηρίζει ανάλυση καταγραφής έως 5MP.
Τα καταγραφικά της Longse αποτελούν προϊόντα τεχνολογικής αιχμής, κατασκευάζονται από ποιοτικά υλικά και με αυστηρά κριτήρια ποιότητας, ώστε να λειτουργούν αξιόπιστα και απροβλημάτιστα, προσφέροντας σιγουριά και ασφάλεια
Τεχνικά χαρακτηριστικά
System
-Main Processor: MC6630
-Operating System: Embedded LINUX
Video
-Input:
Normal Mode: Default: 4x (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P, Analog: 960H + 2x IPC (Max 5MP), Analog+Network: 2x (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H + 7x IPC (MAX 5MP)
LITE Mode: Default: 4x (TVI/AHD: 5M @12fps; AHD/TVI/CVI: 4M @15fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H + 2x network (MAX 5MP), Analog+Network: 2x Analog (TVI/AHD/CVI: 5M @12fps; AHD/TVI/CVI: 4M @15fps; AHD/TVI/CVI: 3M @18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H + 7x network (MAX 5MP), Network: 16x 5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth </=48M)

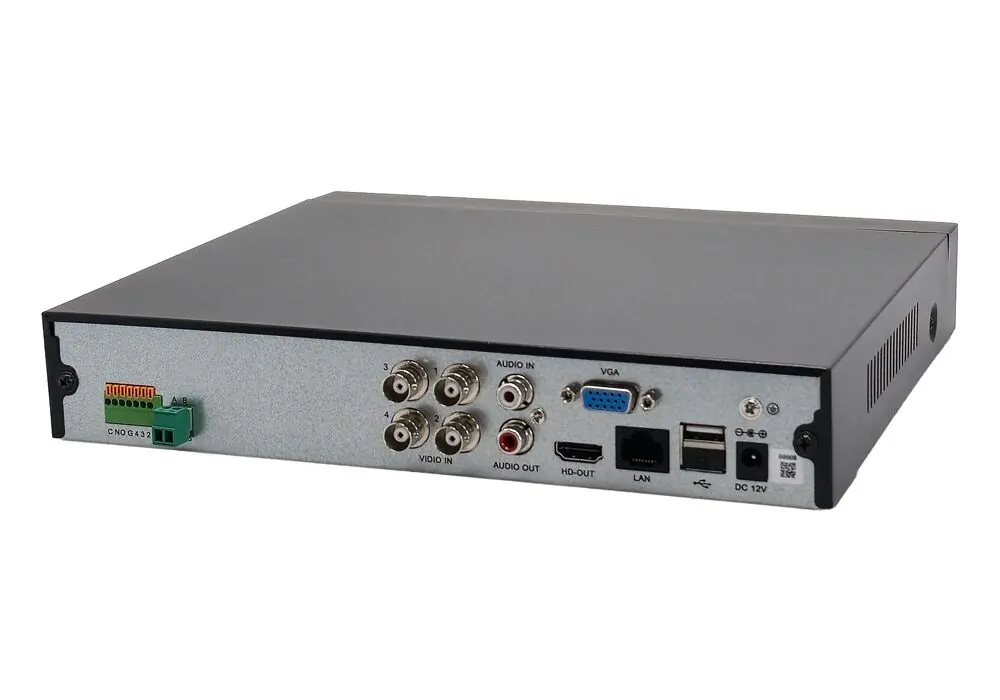

-Input: 4CH BNC
Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output: 1HD,1 VGA
Audio
-Input: 1 Channel, RCA,support AOC
-Two-way Audio: NO
-Output: 1 Channel, RCA
Alarm
-Sensor Input: 4 CH
-Output: 1 CH
-Motion Detection: 4 Channel (max 16 Channel in pure network mode)
-Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
-Email Alarm: Send Image to The Designated E-mail
AI Function
-Human Detection: Yes
PTZ
-Interface: RS485
-Protocol: Pelco-D, Pelco-P
-Baud Rate: 110~921600
-Address: 0~255
Display
-VGA: Resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
-HD Output: Resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
-Display Split: 16 Channel / 9 Channel / 4 Channel / 1 Channel
-Privacy Masking: 3 Rectangular Zones (Each camera)
-OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
-Video Compression: H.265/H.265+/H.264/H.264+
-Audio Compression: G.711U/G.711A
-Resolution: 5MP, 8MP_LITE, 5MP_LITE, 4MP, 4MP_LITE, 3MP, 3MP_LITE, 1080P, 720P, 960H
-Video Quality: Lowest/Low/Ordinary/Good/Better/Best
-Record Rate
Normal Mode: Analog: PAL: 8MP_LITE (4x8fps), 5MP (4x6fps), 5MP_LITE (4x10fps), 4MP (4x8fps), 4MP_LITE (4x15fps), 3MP (4x9fps), 3MP_LITE (4x18fps), 1080P (4x15fps), 720P (4x25fps), 960H (4x25fps), NTSC: 8MP_LITE (4x8fps), 5MP (4x6fps), 5MP_LITE (4x10fps), 4MP (4x8fps), 4MP_LITE (4x15fps), 3MP (4x9fps), 3MP_LITE (4x18fps), 1080P (4x15fps), 720P (4x25fps), 960H(4x25fps)
LITE Mode: PAL: 5MP_LITE (4x10fps), 4MP_LITE (4x15fps), 3MP_LITE (4x18fps), 1080N (4x25fps), 720P (4x25fps), 960H (4x25fps), NTSC: 5MP_LITE (4x10fps), 4MP_LITE (4x15fps), 3MP_LITE (4x18fps), 1080N (4x25fps), 720P (4x25fps), 960H (4x30fps), Pure IP (H.265): PAL: 5MP @8x25fps, 4MP @12x25fps, 3MP @12x25fps, 1080P @16x25fps, 960P @16x25fps, 720P @16x25fps, D1 @16x25fps, NTSC: 5MP @8x30fps, 4MP @12x30fps, 3MP @12x30fps, 1080P @16x30fps, 960P @16x30fps, 720P @16x30fps, D1 @16x30fps
-Record Mode: Manual\Timer\Motion Detection\Alarm\Intelligent
Playback & Backup
-Decode Capability: 2x 1080P @30fps
-Sync Playback:
Normal Mode: Pure Analog: 4CH 5M @6fps, 3CH 8M_LITE @8fps, 4CH 4M @8fps, 4CH 3M @9fps, 3CH 1080P @15fps, Mix Mode: 1CH 5M @30fps, 1CH 4M @30fps, 1CH 3M @30fps, 2CH 1080P @30fps, Pure IPC: 1CH 5MP @30fps, 1CH 4MP @30fps, 1CH 3M @30fps, 2CH 1080P @30fps
LITE Mode: Pure Analog: 4CH 5M_LITE @10fps, CH 4M_LITE @15fps, 3M_LITE @18fps, 4CH 1080N @25fps, Mix Mode: 1CH 5M @30fps, 1CH 4M @30fps, 1CH 3M @30fps, 2CH 1080P @30fps, Pure IPC: 1CH 5MP @30fps, 1CH 4MP @30fps, 1CH 3M @30fps, 2CH 1080P @30fps
-Remote Playback: 4 Channel / 1 Channel
-Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
-Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
-Smartphone Playback: 4 Channel
-Backup Mode: USB Device (with format FAT 32 )/Network/FTP
Network
-Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
-Network Functions: TCP/IP, IPv4/IPv6, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP
-DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
-Web Browser: Edge, Google Chrome, Firefox, Safari
-CMS Software: Support Windows 10/Windows 11/MAC OS
-Extra Stream: CIF (1-30fps) / D1 (1-15fps)
-Smartphone: iPhone, Android
Hard Disk Driver
-Interface Type: 1 SATA Interface
-Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)
General
-Language: Chinese, English, Polish, Czech, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese, Ukrainian
-UTC Control: Yes
-USB Interface: 2 USB 2.0 Interfaces
-Power consumption: DC 12V/1.5A </=7W (without HDD)
-Working Environment: -10~55 °C/10~90%
-Dimension (WxDxH): 260x230x43mm
-Weight: 1.07kg (Without HDD)
-υποστήριξη έως 4 αναλογικών καναλιών
-υποστήριξη έως 16 δικτυακών καναλιών
-υποστηρίζει ανάλυση έως 5MP
-H.265/H.264 video compression
-υποστήριξη απομακρυσμένου ελέγχου μέσω smartphone
-υποστήριξη σκληρού δίσκου με χωρητικότητα έως 8TB
-ελληνικό μενού
